Beam Design Service

  • Specification of Beams designed to safely remove bearing walls
  • Beams designed to reduce or eliminate colums in garages or basements
  • Beams designed to open exterior walls for additions

Service:

  • On-site Measurement
  • Calculation of beams options
  • Beam design letter describing the installation process

Additional Services:

  • Steel Fabrication Drawings
  • Contractor Support / Beam Verification

Beams Types:

  • Conventional Lumber
  • Engineered Lumber
    • LVL (Laminated Veneer Lumber)
    • PSL (Parallel Strand Lumber)
  • Steel I-Beam -- Generally the strongest beam type
  • Composite Beams
    • Flitch Beams -- Layered Beam with Wood and steel laminations for ease of installation.
    • Packed-Out Steel I-Beam

Beam Installation Locations

  • Flush Beam -- When a beam is installed flush to a ceiling.  This method is most often used to open two rooms so there is no visible sign of any beam, and the ceilings are one continuous surface.
  • Drop Beam -- When a beam is mounted unedr the floor that is being supported.  In gereral, this type is easier to install.
  • Upset Beam -- This is a type of flush beam used when supporting an upper wall or structural element where the beam extends above the upper floor surface.  Used in line with walls, or in attics.

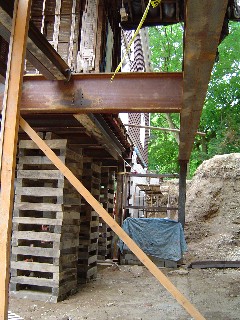

       Steel Beam Installation
